CU/XLPE/BED/CWB/HF
:Application
Used in the ships for control, general power and lighting, where protection is required. Also can be used for indoor and outdoor applications.
:Standard
IEC 60092-353 Design guidelines
IEC 60228 Conductor
IEC 60092-360 Insulation & sheath
IEC 60332-1-2 Flame retardant properties
IEC 60332-3-22 Flame retardant properties
IEC 60754-1,2 Halogen free properties
IEC 61034-1,2 Smoke emission properties

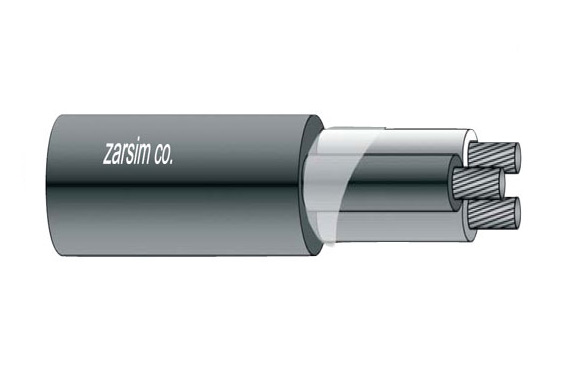

:Construction
.Conductor: Plain or tinned annealed copper, IEC 60228 class 2 or class 5
.Insulation: Halogen free cross-linked polyethylene XLPE, IEC 60092-360
.Bedding: Flame retardant halogen free polyolefin compound, extruded or lapped
.Armour: Plain or tinned copper wire braid
Outer sheath: Flame retardant halogen free polyolefin compound, SHF1,IEC 60092-360
:Core Identification
1 core Black
2 cores Blue - Brown
3 cores Black - Brown - Grey
4 cores Black - Blue - Brown - Grey
5 cores Black - Blue - Brown - Grey - Black
6 cores and more White with black numbers
:(with yellow/green (optional
2 cores + earth (3G) Yellow/green - Blue - Brown
3 cores + earth (3G) Yellow/green - Black - Brown - Grey
4 cores + earth (3G) Yellow/green - Black - Blue - Brown - Grey
